OmniLOG PRO

OmniLOG PRO Series

Omnidirectional high-performance transmit and receive antennas.

These broadband antennas are ideally suited for radial isotropic measurements, interference detection, or frequency monitoring, and, if necessary, for implementing countermeasures—for example, in conference rooms.

OmniLPG Pro omnidirektionale Antennen

  • Frequenz

    150 MHz to 18 GHz – VHF to K-Band

  • Tragbar

    Mobile thanks to only 9.6 cm height and just 600 g weight

  • Leistung

    Up to 100 W transmit and receive power and 2 dBi gain

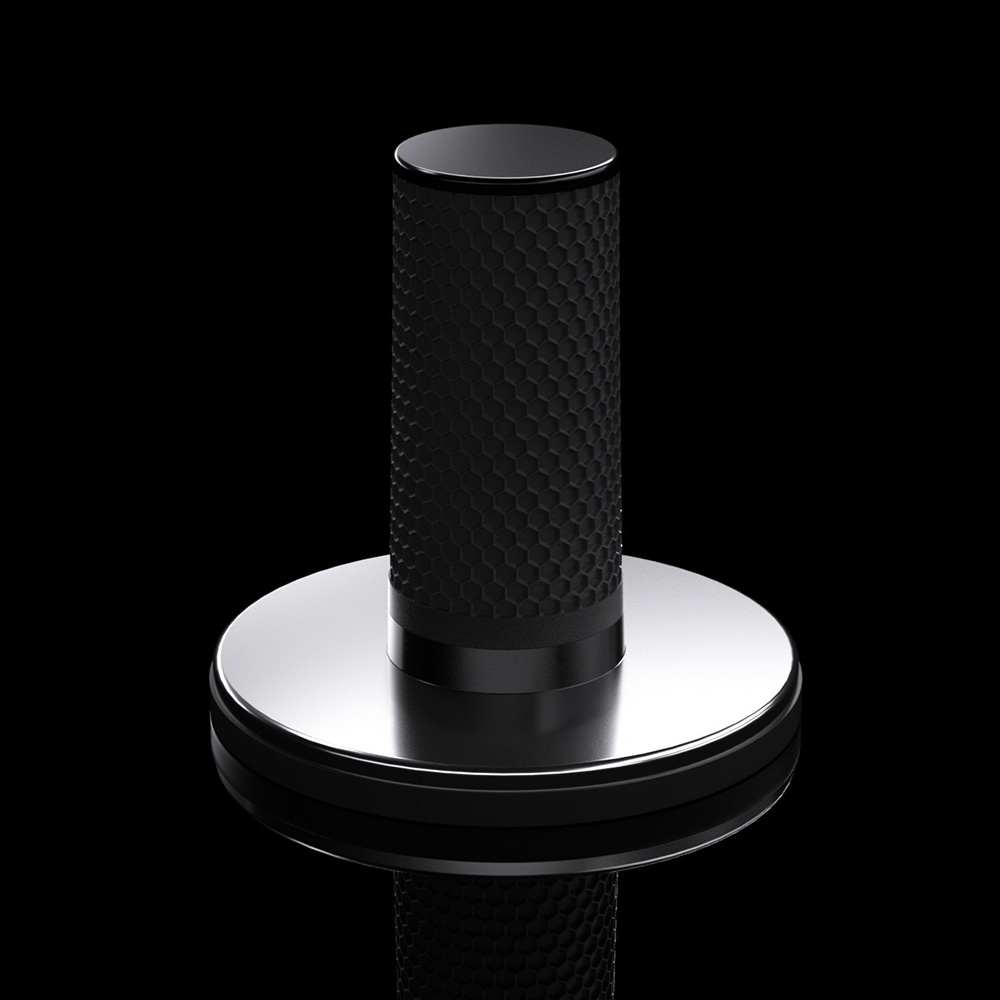

The new OmniLOG® PRO antenna series includes both an ultra-broadband, cost-effective receiving antenna (1 W [CW]) and a high-performance transmit & receive antenna (100 W [CW]).

These broadband antennas are ideally suited for radial isotropic measurements, interference detection, frequency monitoring, and, if necessary, countermeasures—e.g., in conference rooms.

Depending on the version, they cover all RF sources from 150 MHz to 18 GHz—from FM to K-band (e.g., radio and TV, GSM, UMTS, LTE, DECT, Bluetooth, WLAN, etc.). To protect against environmental influences, each OmniLOG PRO features a high-tech antenna housing suitable for outdoor use (IP65 certified).

Selected technical specifications:

  • Frequency range: 150 MHz – 18 GHz (depending on version)
  • Design: Omni-directional
  • Active: No
  • Max gain: 2 dBi
  • Transmit power: 1 W / 100 W
  • Connector: SMA (male)
  • Mounting: Magnetic base
  • Dimensions: Ø 8.4 x H 9.6 cm
  • Weight: 600 g

If you have questions about applications, integration, or technical details, we are happy to assist you.

Order online

You can also order the antennas from the OmniLOG® Pro series directly from our online shop.

Open Online Shop

Downloads

Data sheet

Product inquiries

  • This email address is being protected from spambots. You need JavaScript enabled to view it.
  • +49(0)7251-923875-0

Share with others:

Read more …OmniLOG PRO

  • Hits: 122

Written by admin on . Posted in Radio.

SpectranV6 ECO

SpectranV6 ECO

World First: The Realtime Spectrum Analyzer Spectran V6 ECO sets new standards.

  • 7,2 GHz 16bit USB Real-Time Spectrum Analyzer
  • RX, RX + TX oder 2xRX
  • Up to 88 MHz real-time bandwidth
  • High-performance, modular, and scalable software for Windows and Linux
  • Popular SDR (Software Defined Radio) interfaces, e.g., for GNU Radio, SDR Angel, MATLAB®
SpectranV6 ECO von Aaronia

The key features at a glance:

  • 96 MHz IQ band width

    (o. Tx)

  • 3 THz/s Sweep Speed

  • -170dBm DANL/Hz

    (4dB NF)

  • 16-Bit ADC Dual Receiver

    at 48 MHz IQ RTBW

  • Full band width

    USB Rx & Tx IQ streaming

  • Software

    High-performance, modular & scalable software

  • SDR interfaces

    e.g., for GNU Radio, SDRangel & MATLAB®

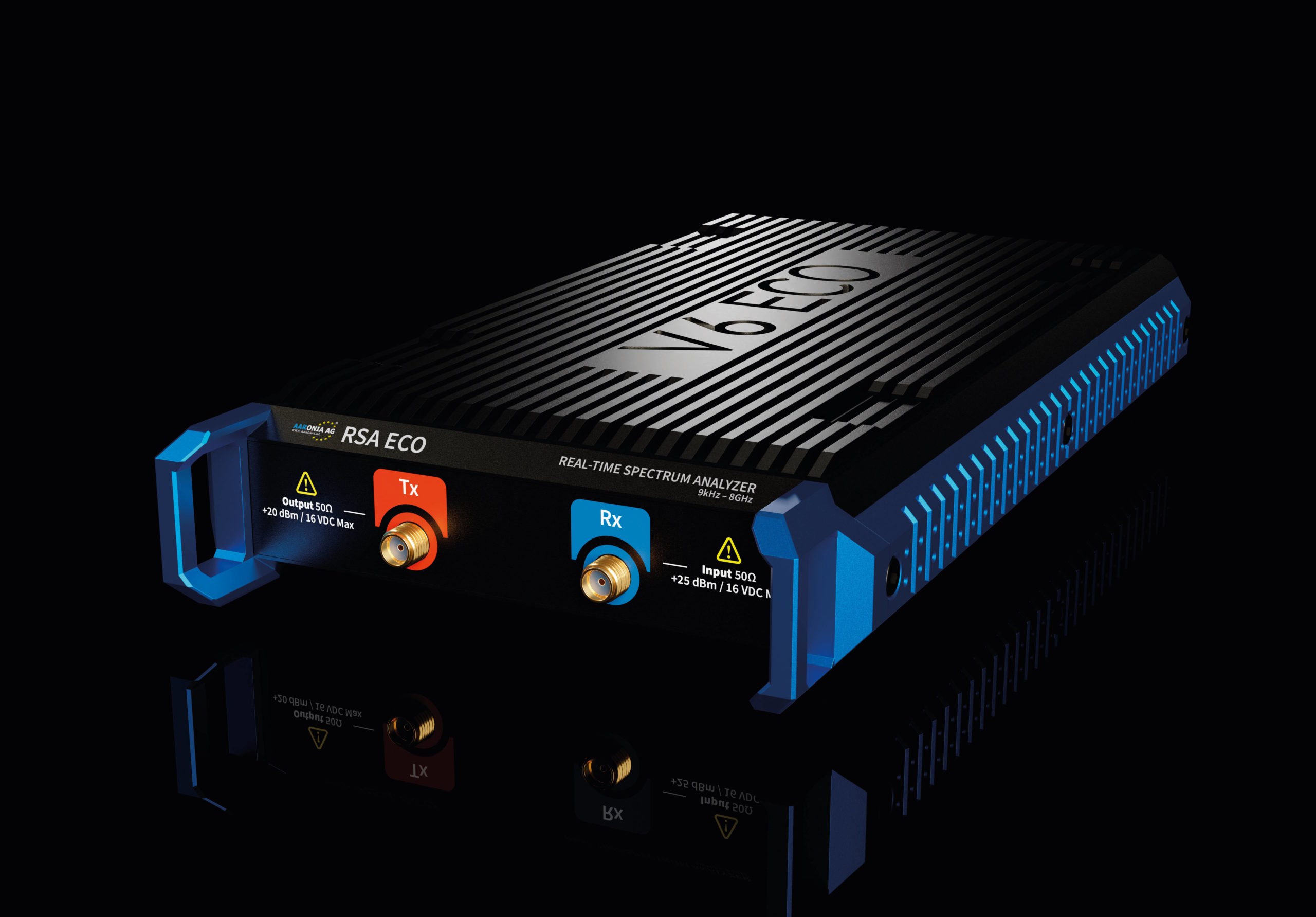

The new Spectranalyzer Spectran V6-ECO from Aaronia sets new standards. It combines a 7.2 GHz spectrum analyzer, signal generator, and a full-featured SDR. Equipped with powerful software and numerous interfaces, it offers unprecedented capabilities — all starting at a budget of just €1,500.

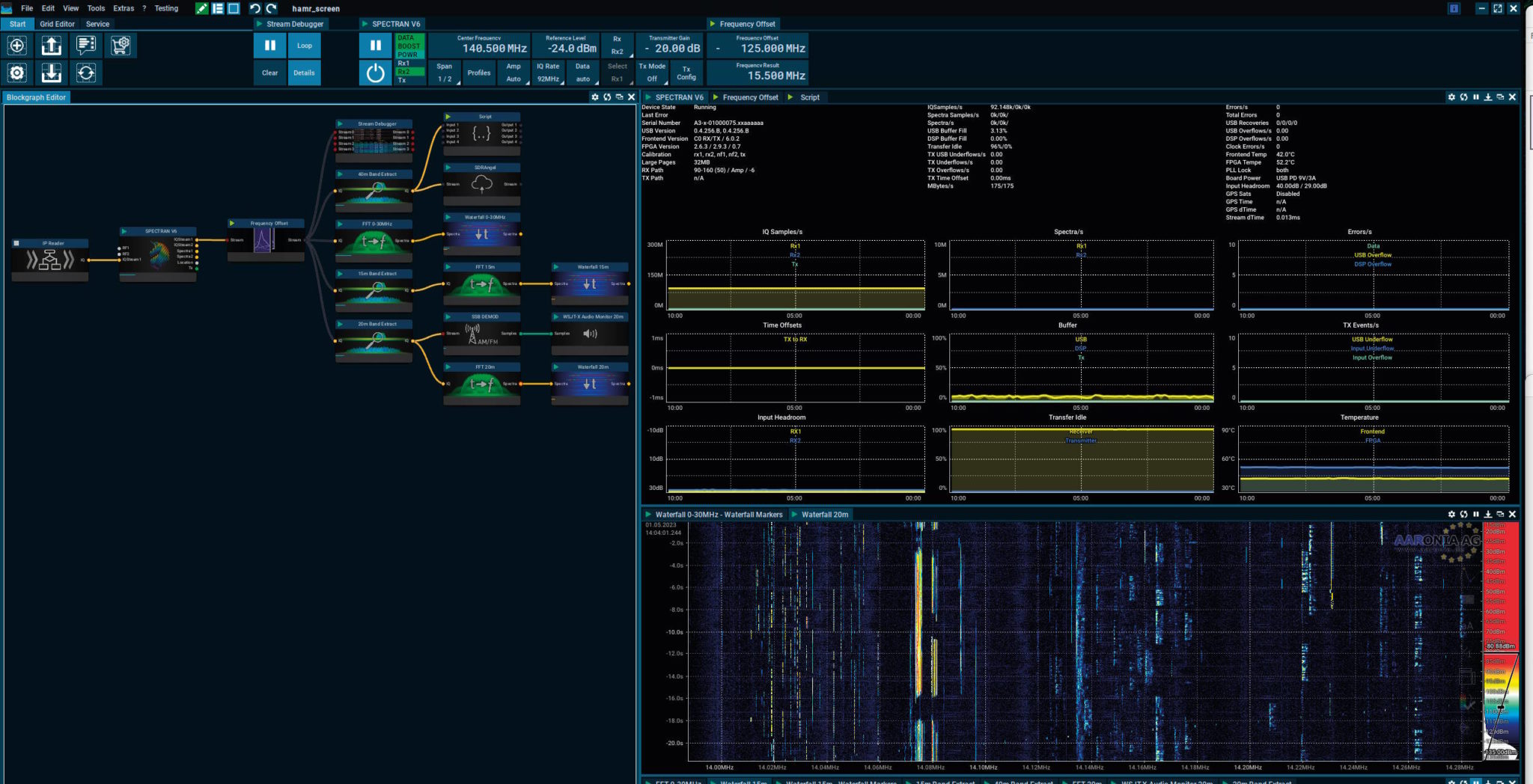

  • V 6 Eco 02 2048 X 1048

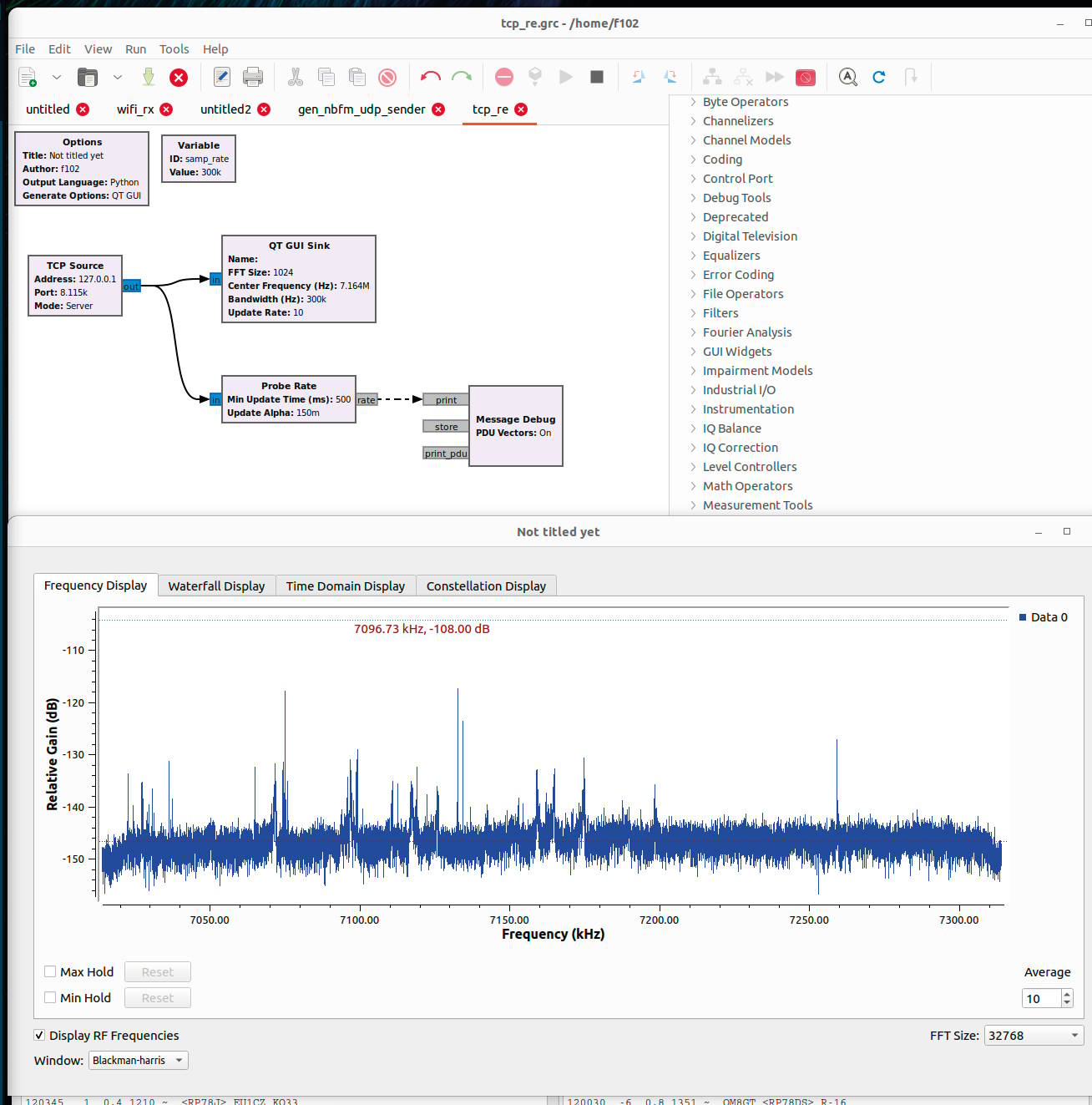

  • V 6 Eco 05

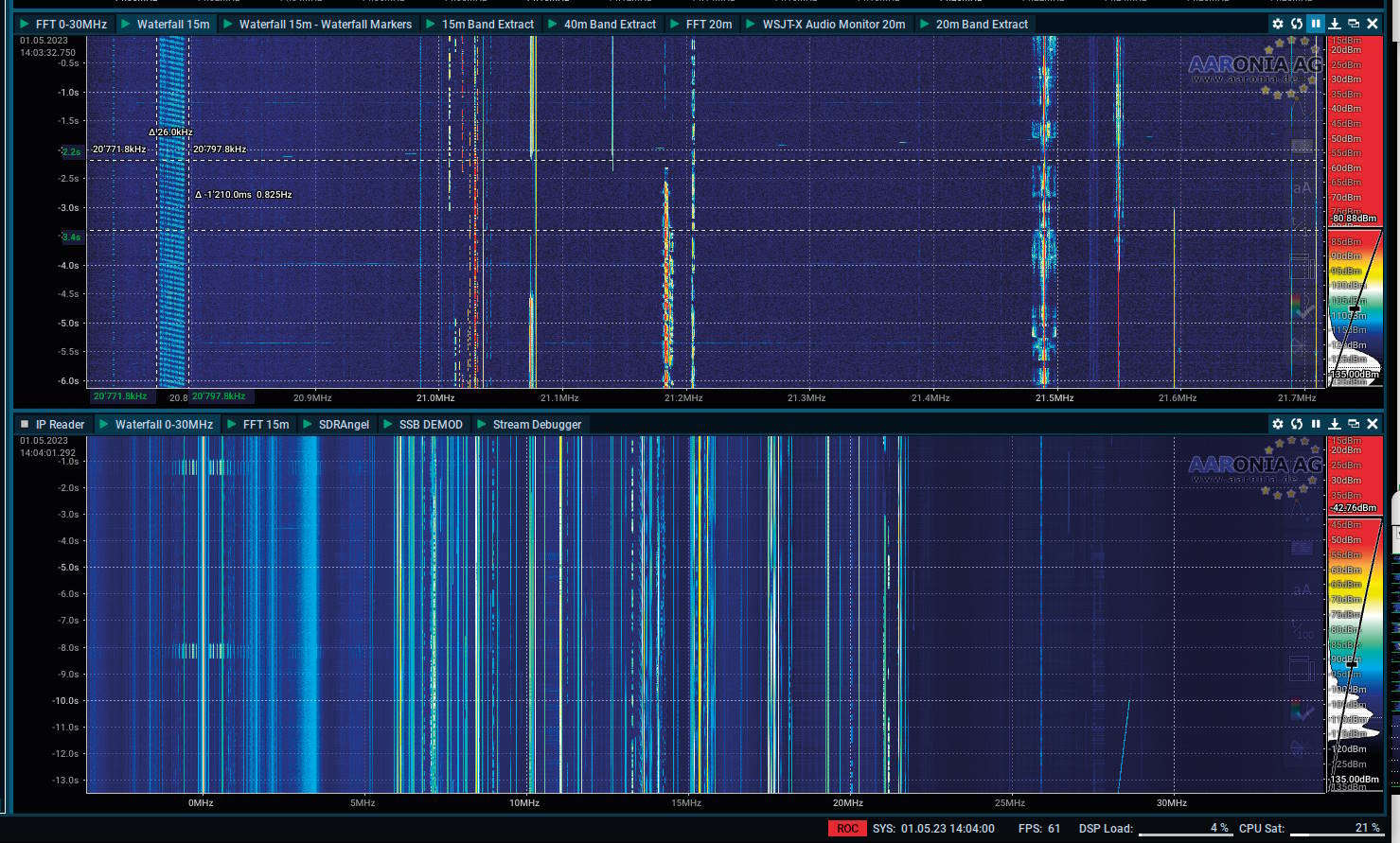

  • V 6 Eco 04

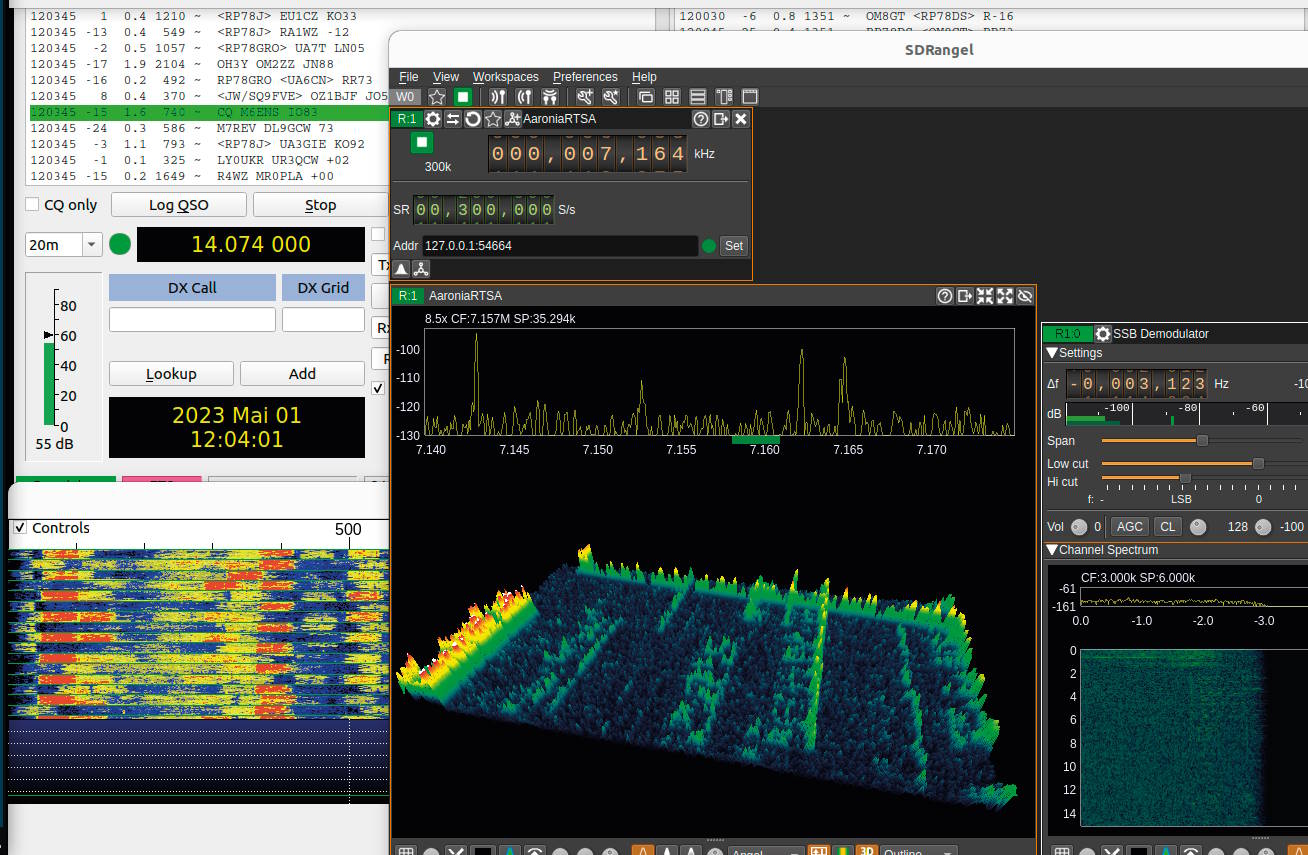

  • V 6 Eco 03

Additional hardware and software options can be integrated to meet further requirements.

What is a Spectrum Analyzer?

A spectrum analyzer is a measuring device used to display and analyze electrical signals across different frequency ranges. It shows the intensity of the signal as a function of frequency, enabling fast and accurate analysis of signals in audio, radio, and other electrical engineering applications.

Downloads

Product Inquiries

  • This email address is being protected from spambots. You need JavaScript enabled to view it.
  • +49(0)7251-923875-0
Made in Germany
